Specifications：
1.Main structure of Aluminum alloy
2.Steel Parts Connection, Hot-dip galvanizing processing (60um or more thickness)
3.Coated fabrics Top cloth, cloth edge
|
|

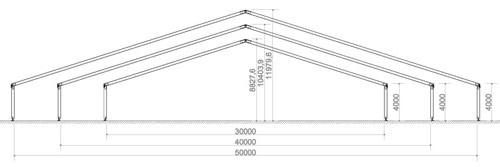

Section：
1.Span：30m 40m 50m
2.Side height:4m
3.Top height: Side height+1/2width×tan18° |
 |
|

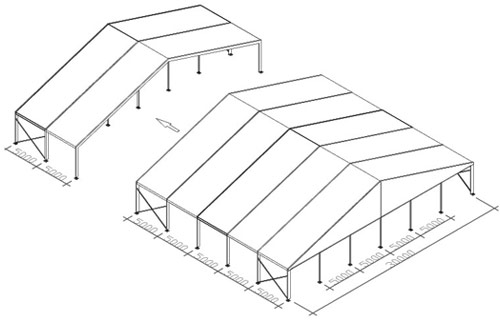

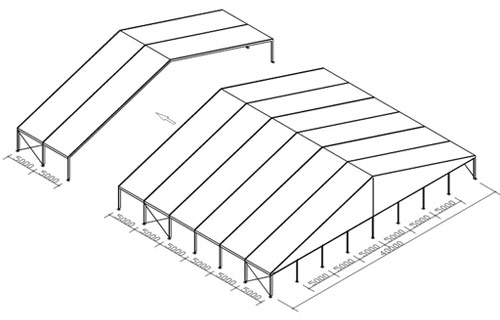

Three-dimensional:
1. Unit :5m
2.Length :N*5 (N≥1, the number of units) |
 |
|
Specifications：
1. Main structure of Aluminum alloy
2. Steel Parts Connection, Hot-dip galvanizing processing (60um or more thickness)
3. Coated fabrics Top cloth, cloth edge
Section：
1. Span：30m 40m 50m
2. Side height:4m
3. Top height: Side height+1/2width×tan18°
Three-dimensional:
1. Unit :5m
2. Length :N*5 (N≥1, the number of units)
Characteristics:
1. Modular, expandable
2. 100% relocatable, environmental
3. Limited maintenance required
4. Wind-resisting capability: 8
5. Fire-proof:DIN4102(German),B1(China),M2(France),NFP92503(America)
6. Snow shedding capabilities, rain shedding capabilities
7. Use the waterproof design, 18 °design conducive to drainage
Customer design:
1. NAT series of tents, material fixed, within the span can be customized.
2. Shape can be customized, in the control range.
Installation ：
1. In the circumstances of grass or soil, use the drill rod to fix(drill rod length:1m)
2. In the concrete or asphalt pavement with 0.2m thick case, use the expansion screws or drill rod to fix..
3. Tile, asphalt and other circumstances do not allow drilling, the use of fixation: weight method.
Accessories:
1. Doors & Glass Elements & cassette wall
2. Electrical & Lights
3. HVAC
4. Curtain
5 Floor and carpet
Summarize:
NAT series of tents suitable for large-scale exhibitions, commercial activities, product launches, catwalk, sporting events (Olympic Games, National Games, Asian Games, world championships, etc.), theatrical performances, car test drive, temple festivals etc.; in the fields of industry, such as large supermarkets, logistics and warehousing, temporary storage and airport.
|
