Specifications：

   1.    Main structure of Aluminum alloy

   2.    Steel Parts Connection, Hot-dip galvanizing processing (60um or more thickness)

   3.    Coated fabrics Top cloth, cloth edge

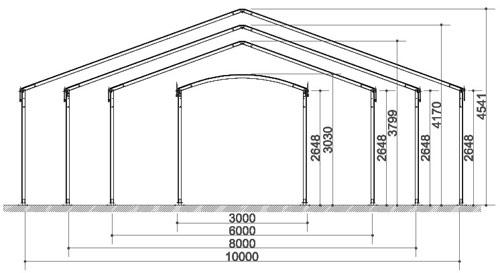

Section：

   1.    Span：3m 6m 8m 10m

   2.    Side height:4m

   3.    Top high: Side height +1/2width×tan20°

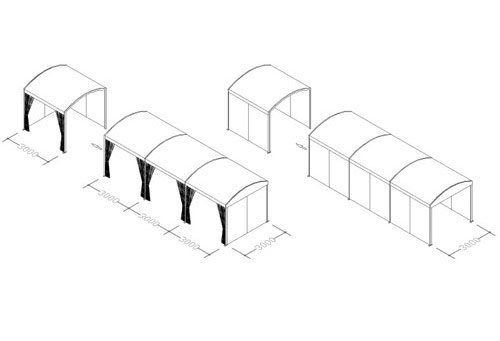

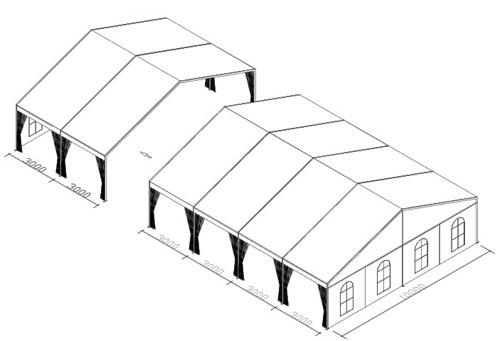

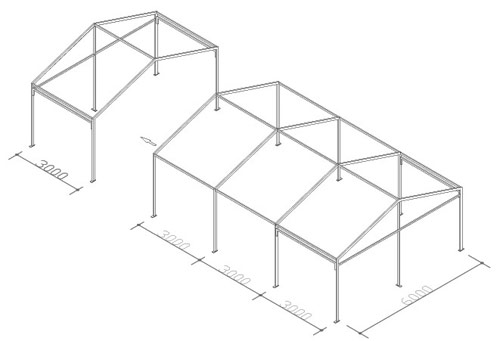

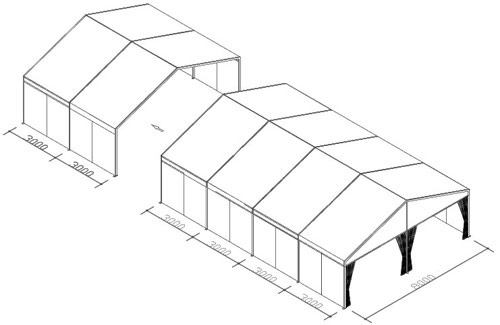

Three-dimensional:

   1.    Unit :3m

   2 .    Length :N*3 (N≥1, the number of units)



   1.     Modular, expandable

   2.     100% relocatable, environmental

   3.     Limited maintenance required

   4.     Wind-resisting capability: 8

   5.     Fire-proof:DIN4102(German),B1(China),M2(France),NFP92503(America)

   6.     Snow shedding capabilities, rain shedding capabilities

   7.     Use the waterproof design, 20 ° design conducive to drainage



   1.     NST series of tents, material fixed, within the span can be customized.

   2.     Shape can be customized, in the control range.



Installation ：

   1.      In the circumstances of grass or soil, use the drill rod to fix(drill rod length:1m)

   2.      In the concrete or asphalt pavement with 0.2m thick case, use the expansion screws or drill rod to fix..

   3.      Tile, asphalt and other circumstances do not allow drilling, the use of fixation: weight method.

   4.      In the flat ground, you can use the load-bearing flooring installation of tents.



Accessories:

   1.      Doors & Glass Elements & cassette wall

   2.      Electrical & Lights

   3.      HVAC

   4.      Curtain

   5.      Floor and carpet



Summarize:

NST series of tents, suitable for small receptions, outdoor temporary housing, parking, security implementation, the audience lounges, food festival, food and beverage sales, mini-exhibition and arts festival.
